Solar PV Modules
Solar PV Modules (100–720 W)

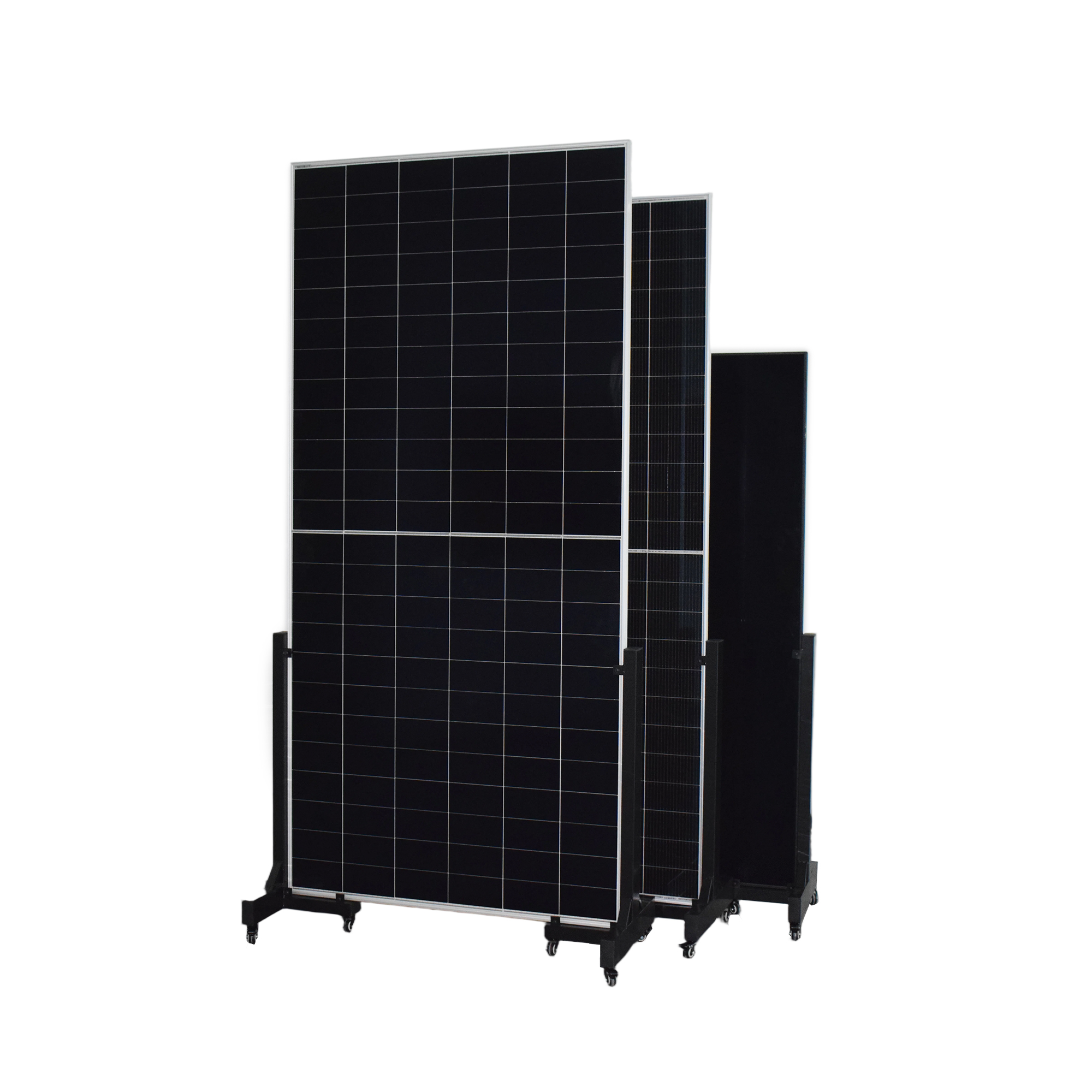

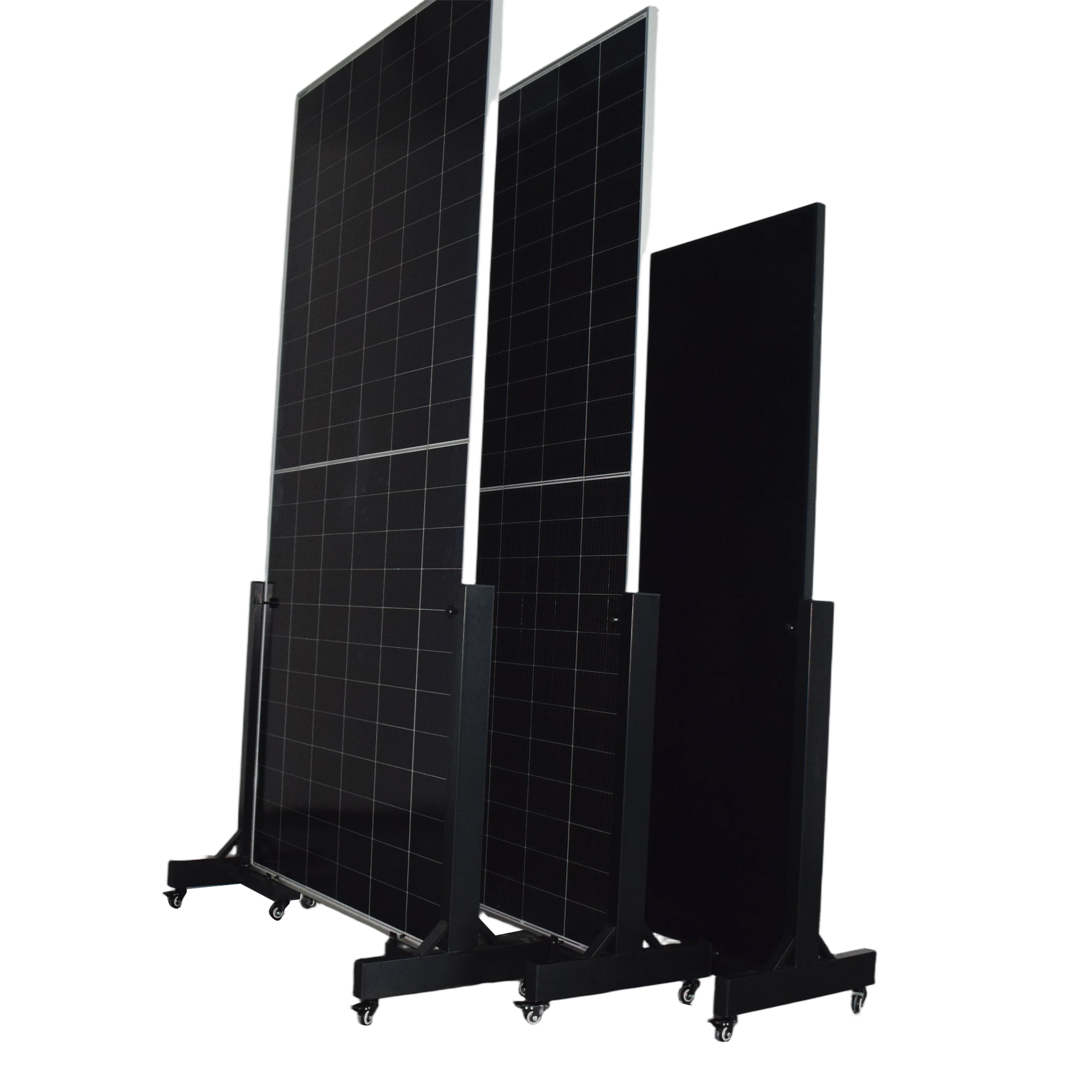

A solar PV module range covering seven supplied models from 100 W to 720 W.
- DW-100MO
- 100 W · 210×52.5 mm cells · 2×18 cells · 1030×460×30 mm · 4.6 kg
- DW-200MO
- 200 W · 210×105 mm cells · 3×13 cells · 1470×670×30 mm · 10.7 kg
- DW-300MO
- 300 W · 210×105 mm cells · 4×15 cells · 1680×880×30 mm · 14.2 kg
- DW-480MO
- 480 W · 182×91 mm cells · 6×20 cells · 1909×1134×30 mm · 23 kg
- HSS90TC-MHO-D
- 590 W · 182×91 mm cells · 6×24 cells · 2279×1134×30 mm · 31.5 kg
- HS620TC-MHO-D
- 620 W · 182×105 mm cells · 6×22 cells · 2382×1134×30 mm · 32.5 kg
Product overview
The customer-supplied module range includes DW-100MO, DW-200MO, DW-300MO, DW-480MO, HS590TC-MHO-D, HS620TC-MHO-D and HS720TC-MHO-D.
The specification image lists each model’s rated power, cell size, cell arrangement, dimensions and net weight.
Basic information
- DW-100MO
- 100 W · 210×52.5 mm cells · 2×18 cells · 1030×460×30 mm · 4.6 kg
- DW-200MO
- 200 W · 210×105 mm cells · 3×13 cells · 1470×670×30 mm · 10.7 kg
- DW-300MO
- 300 W · 210×105 mm cells · 4×15 cells · 1680×880×30 mm · 14.2 kg
- DW-480MO
- 480 W · 182×91 mm cells · 6×20 cells · 1909×1134×30 mm · 23 kg
- HSS90TC-MHO-D
- 590 W · 182×91 mm cells · 6×24 cells · 2279×1134×30 mm · 31.5 kg
- HS620TC-MHO-D
- 620 W · 182×105 mm cells · 6×22 cells · 2382×1134×30 mm · 32.5 kg
- HS720TC-MHO-D
- 720 W · 210×105 mm cells · 6×22 cells · 2384×1303×33 mm · 38.5 kg
