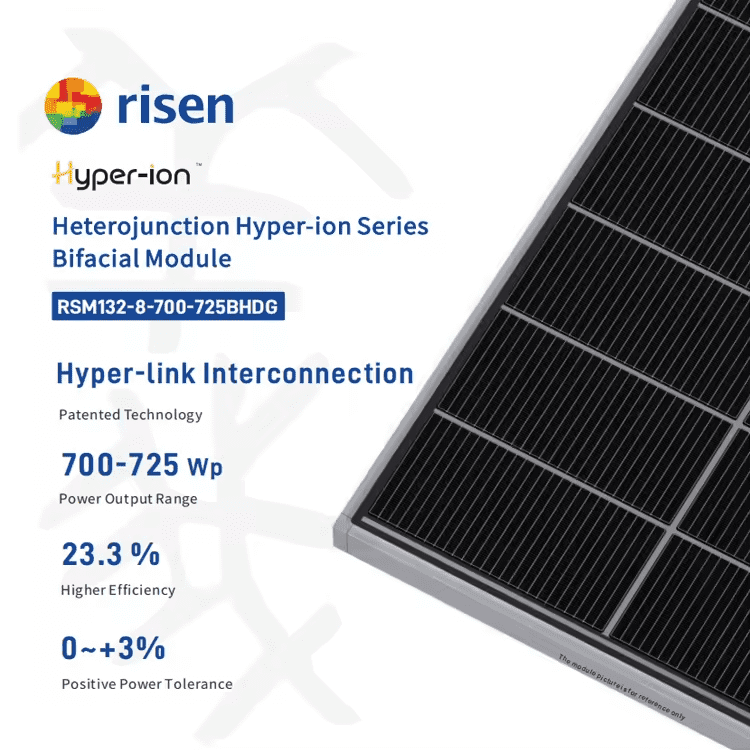

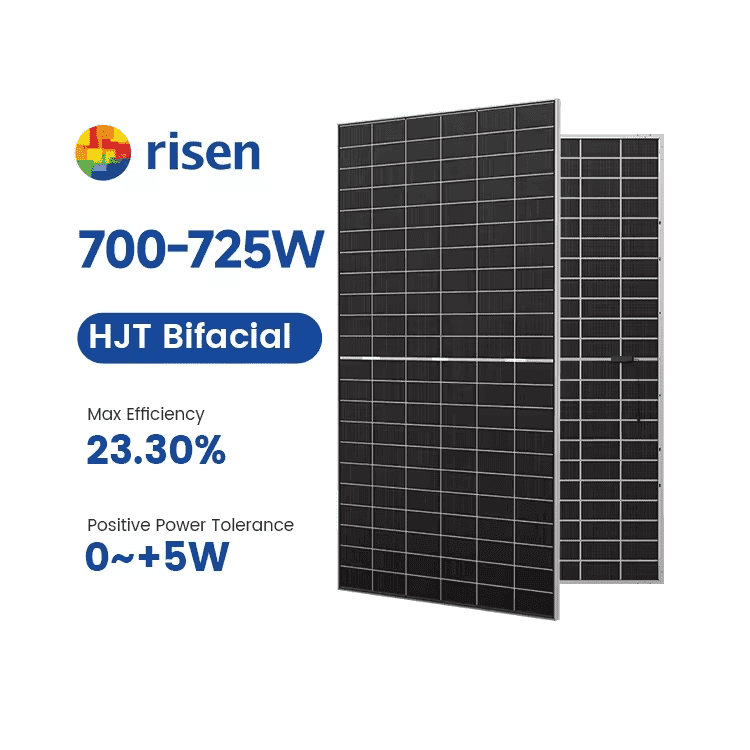

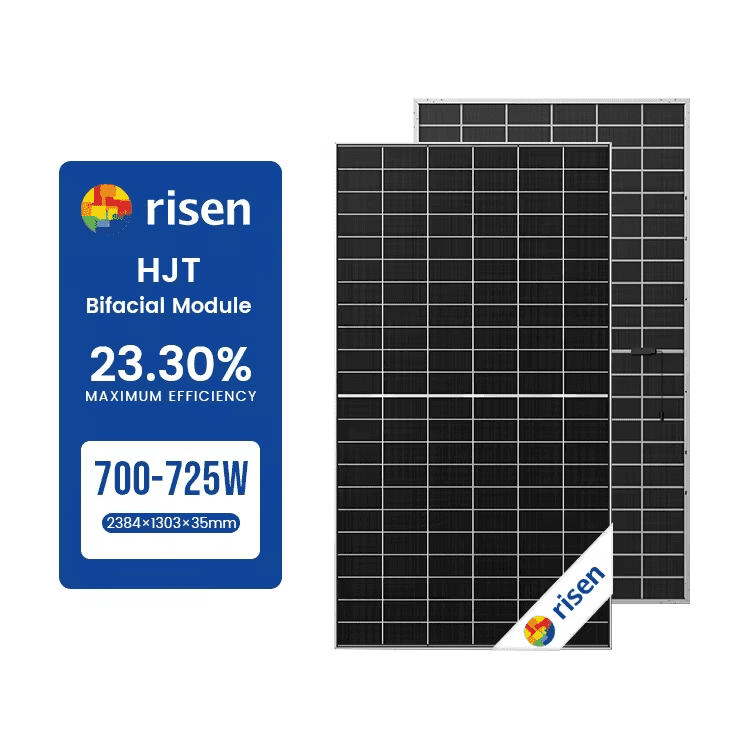

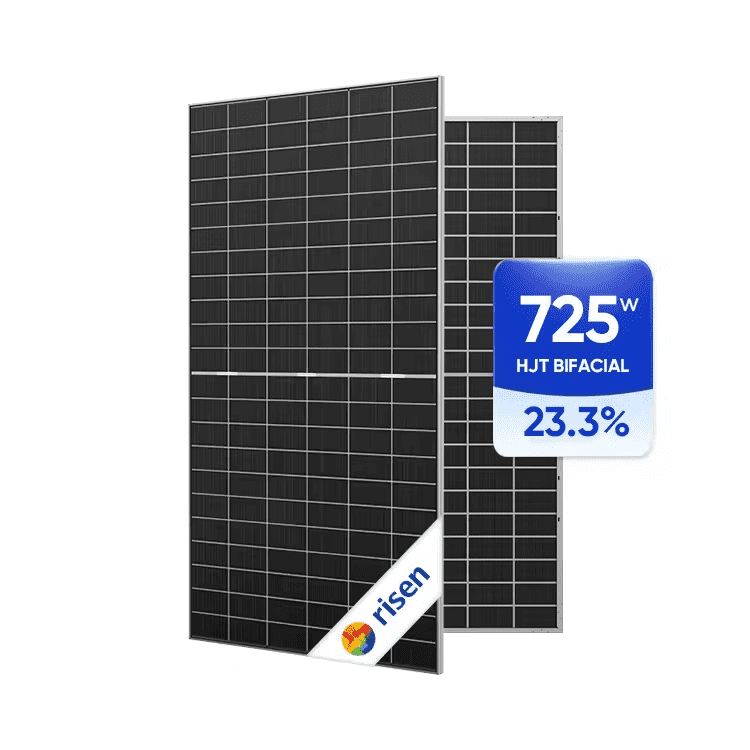

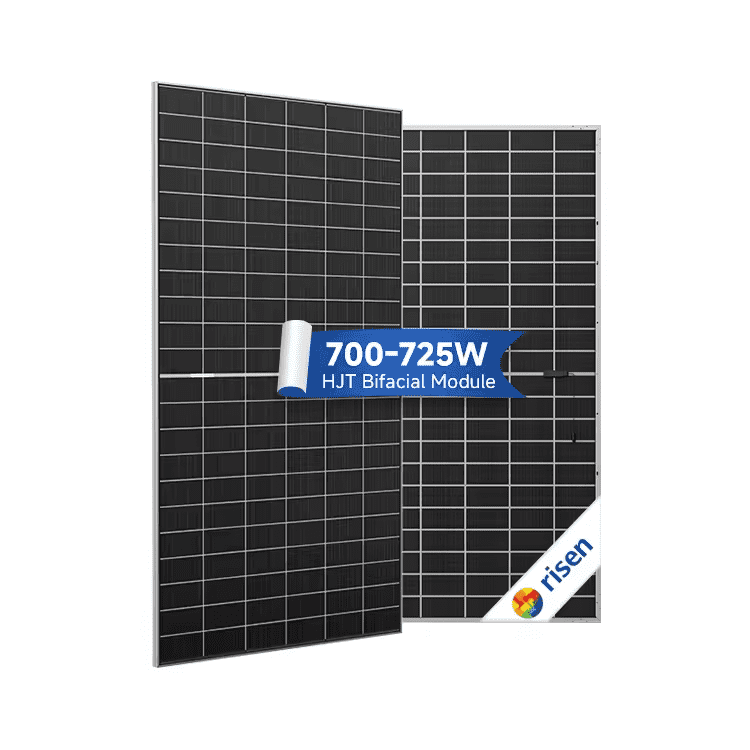

Risen 700-725W HJT Type 66 Cells Mono-Bifacial Half-cut Module Solar Panel–RSM132-8-700-725BHDG

210*182mm 725 Watt TOPCON Solar PV Panel
Solar cell : Mono-Bifacial 210*182mm
Number of cells : 132 (66×2)
Power range : 725W
Size : 2384×1303×33mm
Certificate : TUV, CE
Lead time : 10 days
Payment : T/T, L/C

Product Description

SPECIFICATIONS
Weight	33.7kg
Dimension	2382mm1303mm33mm
Cell Dimension	210*105mm
Cell Amount	66*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the Front Glass	2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass
Type of the Back Glass	2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
Frame	Anodized Aluminium Alloy
Cable	Photovoltaic Technology Cable 4.0mm2 (0.006 inches2
	Portrait: 350/280 mm(13.78/11.02 inches)
	Length can be customized
Connector	MC4 / PV-SY02
Application Level	Class A

PACKING CONFIGURATION
Modules/Pallet	31 Pieces
Packaging Description	20 Pallets, Total=(31+31)x10=620 Pieces
Modules/40’Container	620 Pieces
Warranty	30 Years
