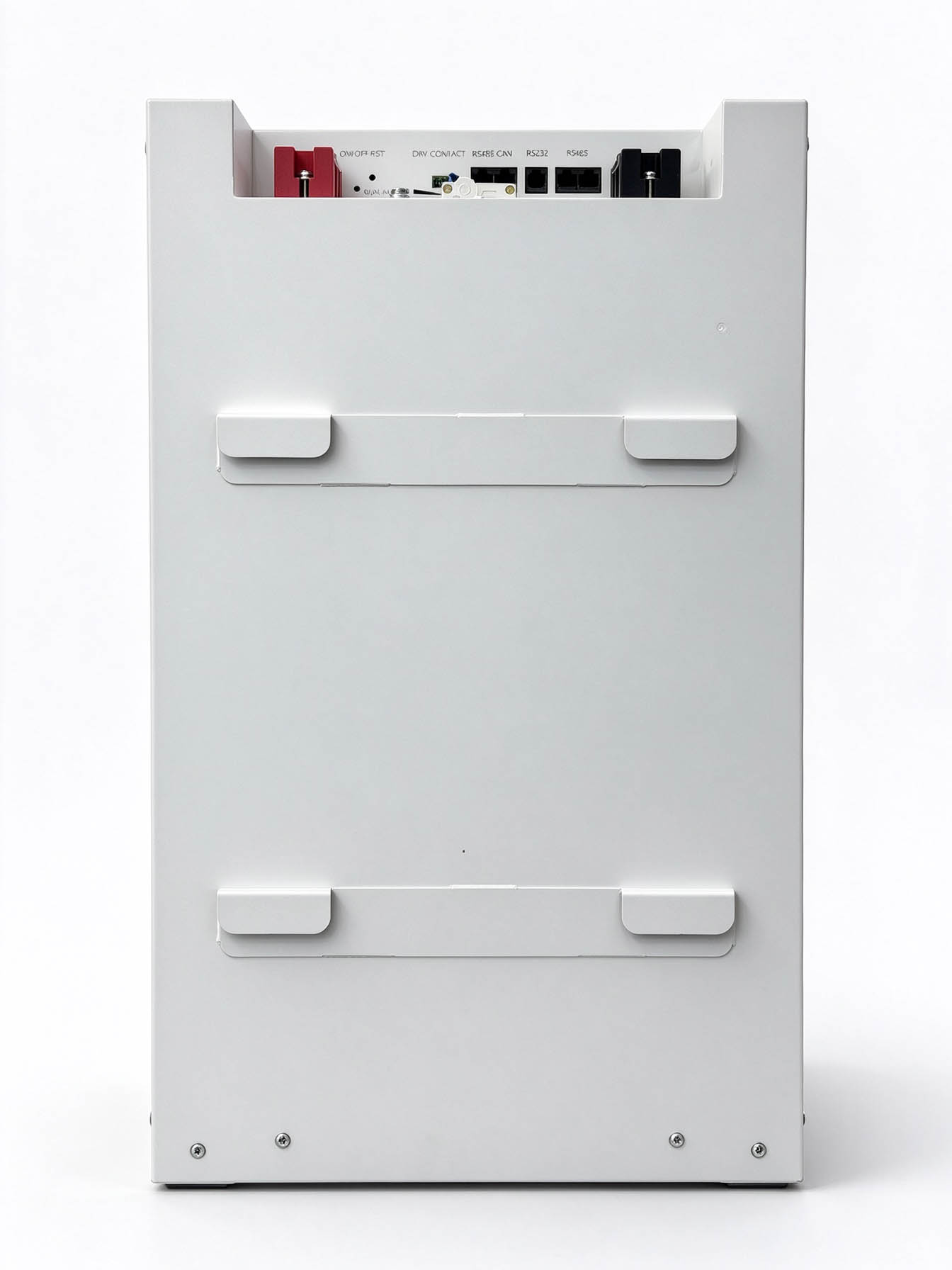

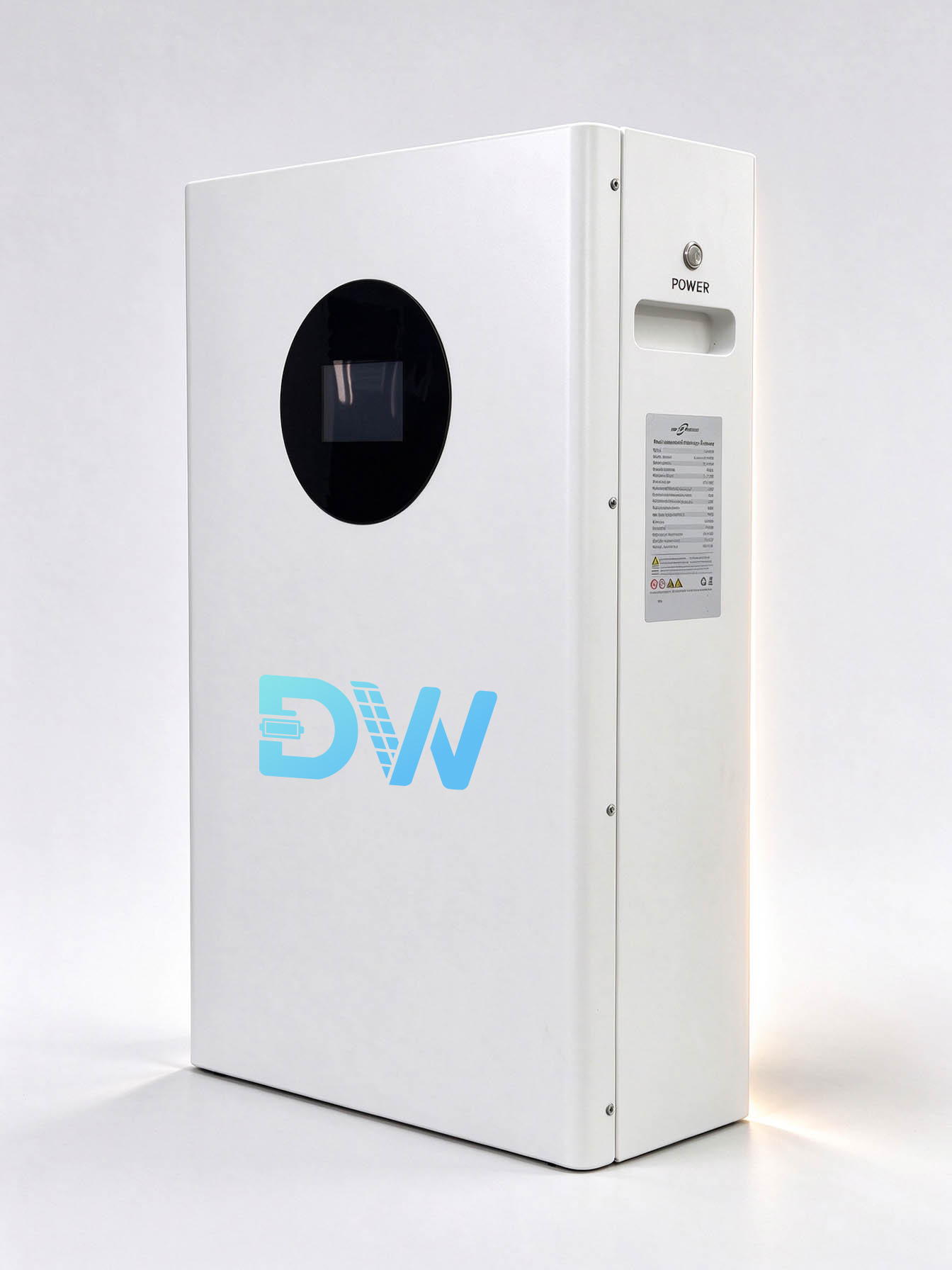

DW-ES-LV-5 5.12kWh Energy Storage Battery
5.12 kWh wall-mounted or floor-type LiFePO4 energy storage battery.
- Model
- DW-ES-LV-5
- Nominal Capacity
- 100 Ah
- Rated Capacity
- 5.12 kWh
- Cycle Life
- 6000 cycles (25 °C at 80% DoD)
- Recommended / Maximum Charge Current
- 50 / 100 A
- Recommended / Maximum Discharge Current
- 50 / 100 A
Product overview
5.12 kWh wall-mounted or floor-type LiFePO4 energy storage battery.
Applications
- Residential energy storage
- Solar self-consumption
- Backup power
Basic information
- Model
- DW-ES-LV-5
- Nominal Capacity
- 100 Ah
- Rated Capacity
- 5.12 kWh
- Cycle Life
- 6000 cycles (25 °C at 80% DoD)
- Protection Rating
- IP20
- Installation
- Wall-mounted or floor type
- Certification
- CE, UN38.3, MSDS
- Nominal Voltage
- 51.2 V DC
- Voltage Range
- 44–58.4 V
- Communication
- CAN / RS485 / RS232
- Maximum Parallel Connections
- 15
- Protection Mechanisms
- Temperature, overcurrent, short-circuit, overcharge, overdischarge and low-voltage protection
- Cell Type
- LiFePO4
Charging parameters
- Recommended / Maximum Charge Current
- 50 / 100 A
- Recommended / Maximum Charge Voltage
- 58 / 58.4 V
- Charge Temperature
- 0–55 °C
Discharging parameters
- Recommended / Maximum Discharge Current
- 50 / 100 A
- Discharge Temperature
- −20–60 °C
Installation & operating conditions
- Dimensions
- 640 × 380 × 160 mm
- Net Weight
- 45.2 ± 3 kg
- Storage Temperature
- −20–45 °C
- Shell Material
- Sheet metal
